Interactive TUI Explorer

The DebtDrone TUI is a full-screen terminal application built with Bubble Tea v2 and styled with Lipgloss. It is designed for the exploratory half of the workflow: understanding a codebase, spotting trends across scan history, and adjusting analysis settings — all without leaving the terminal.

Launching the TUI

Type debtdrone with no arguments:

debtdrone

The application opens to a centered command bar beneath the DebtDrone ASCII logo. Type / to begin a command, or press Tab to cycle through suggestions.

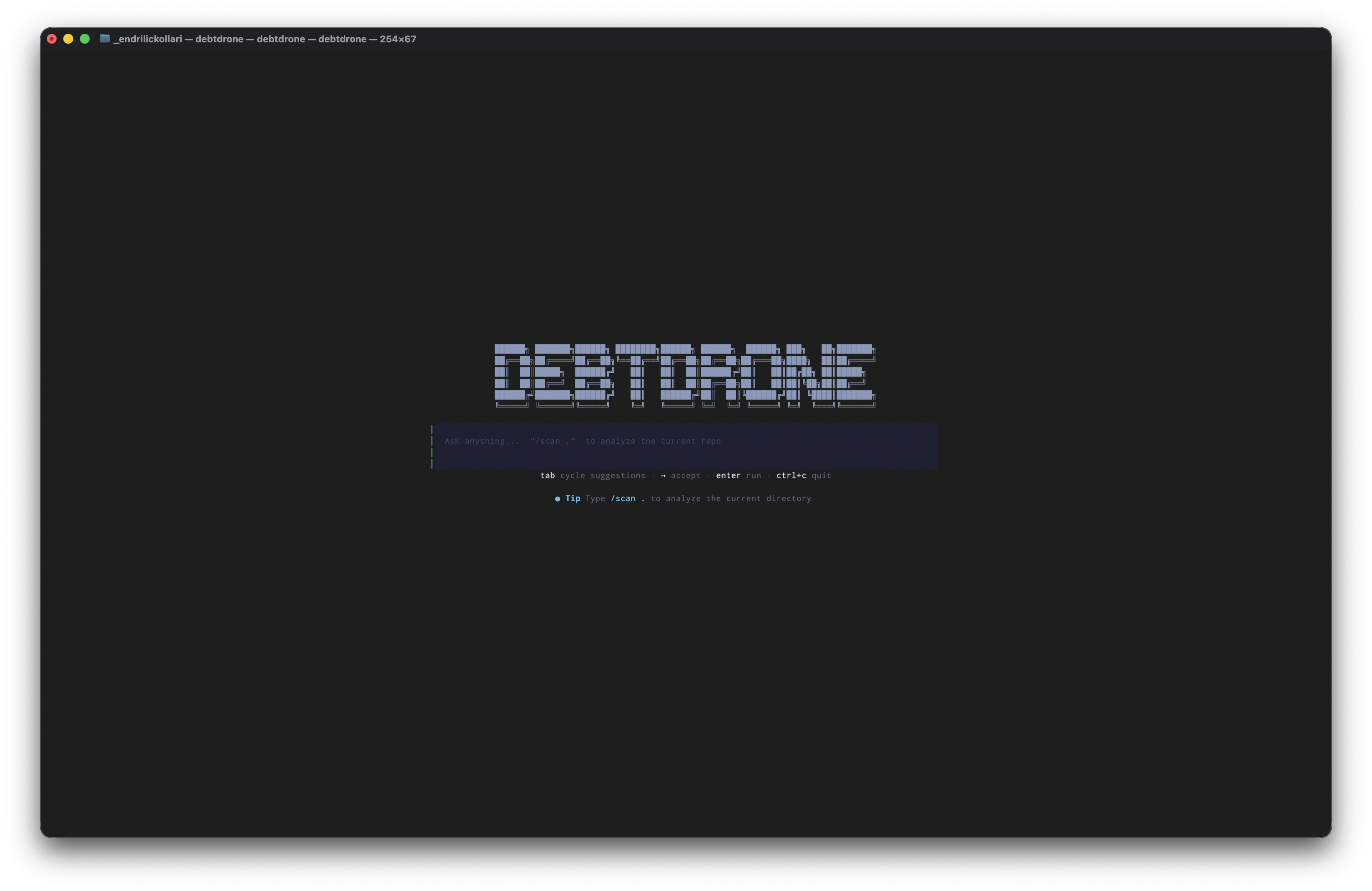

DebtDrone TUI welcome screen showing the ASCII logo and command bar The TUI welcome screen. The command bar accepts slash-prefixed commands and offers tab-completion.

Directory context

The TUI targets the directory from which it is launched. Run it from your repository root for the most accurate results.

DebtDrone uses familiar Vim-style keybindings throughout every view.

Key Action
j / ↓ Move selection down
k / ↑ Move selection up
Enter Confirm selection / drill into detail
Esc Go back to the previous view / cancel
Tab Cycle through completions in the command bar
q Quit the application from the menu
? Toggle the help overlay

These bindings are consistent across all child views (scan results, history browser, config editor). There is no mode-switching; Esc always returns you to the previous context.

The Command Bar

When the TUI opens, you land on the command bar. Type / to begin a command. The bar offers tab-completion and shows a description of each command as you navigate.

Available commands:

Command Description
/scan Analyze the current directory for technical debt
/history Browse all previous scan runs
/config Open the interactive settings editor
/update Check for a new DebtDrone release
/help Show the full keybindings reference
/quit Exit the application

/scan — Analyzing Your Codebase

/scan

Pressing Enter on /scan triggers the analysis engine. The view transitions through two phases:

Phase 1 — Scanning

A focused progress panel appears at the center of the screen. It shows the name of the currently-running analyzer, the path being processed, and a live progress bar so you always know how far along the scan is. Press Ctrl+C to cancel at any time.

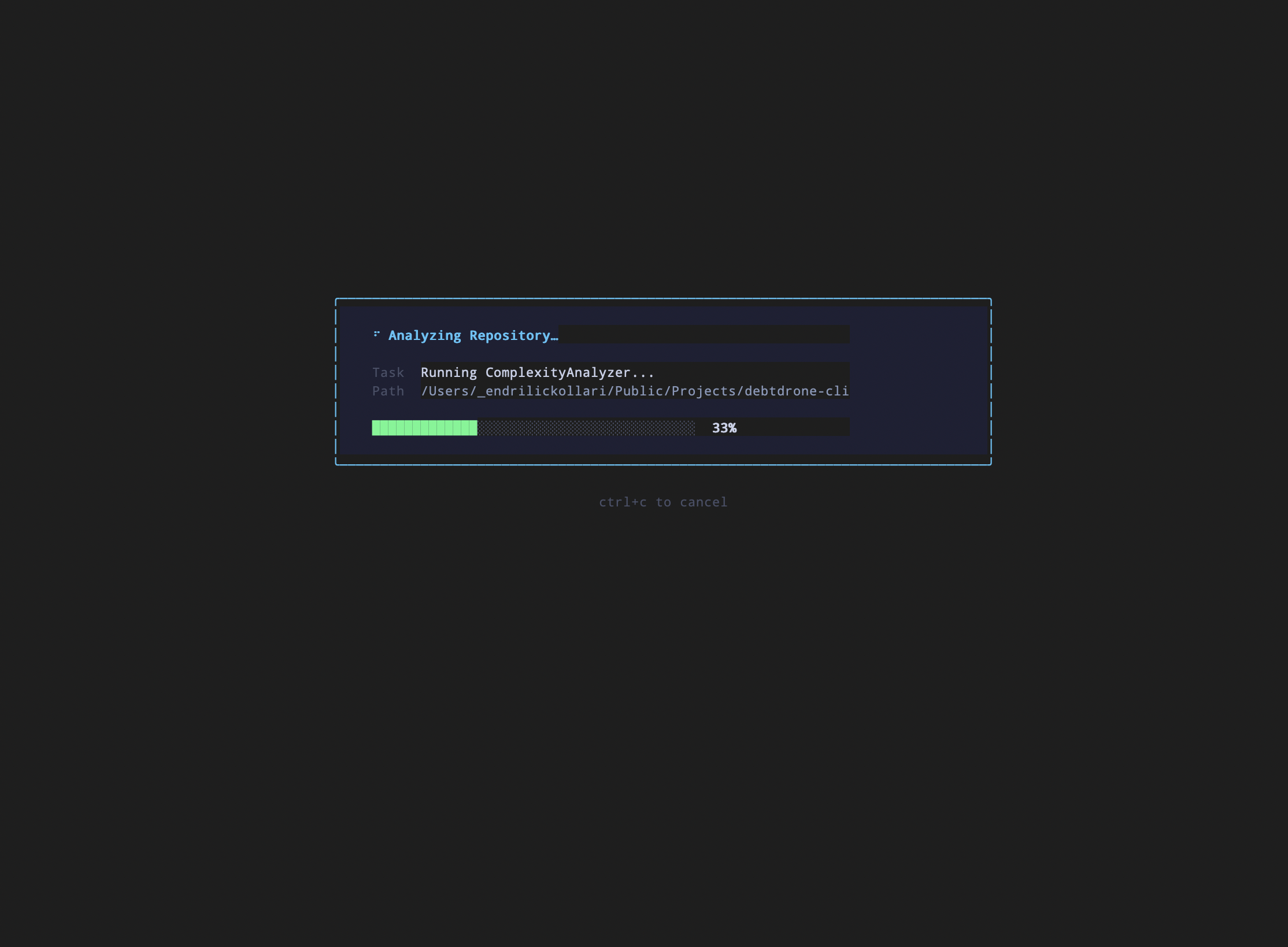

Scan in progress panel showing ComplexityAnalyzer running at 33% The scan progress panel mid-run. The active task (ComplexityAnalyzer) and the scanned path update in real time.

What gets scanned?

DebtDrone analyzes 14 languages: Go, JavaScript, TypeScript (including JSX/TSX), Python, Java, C#, PHP, Ruby, Rust, Kotlin, Swift, C, and C++. Files in node_modules, vendor, dist, and .git are excluded by default.

Phase 2 — Results (Master-Detail Layout)

Once scanning completes, the view expands into a full master-detail layout.

  • Top pane (Master): A scrollable list of all flagged files and functions, colour-coded by severity (critical in red, high in orange, medium in yellow, low in blue). Use j/k to navigate.
  • Bottom pane (Detail): The full breakdown for the selected item, including:
    • All computed metrics (Cyclomatic Complexity, Cognitive Complexity, Nesting Depth, Parameters, LOC)
    • Severity rating and estimated debt in minutes — a concrete number for sprint planning
    • Actionable Refactoring Suggestions generated from the specific violation

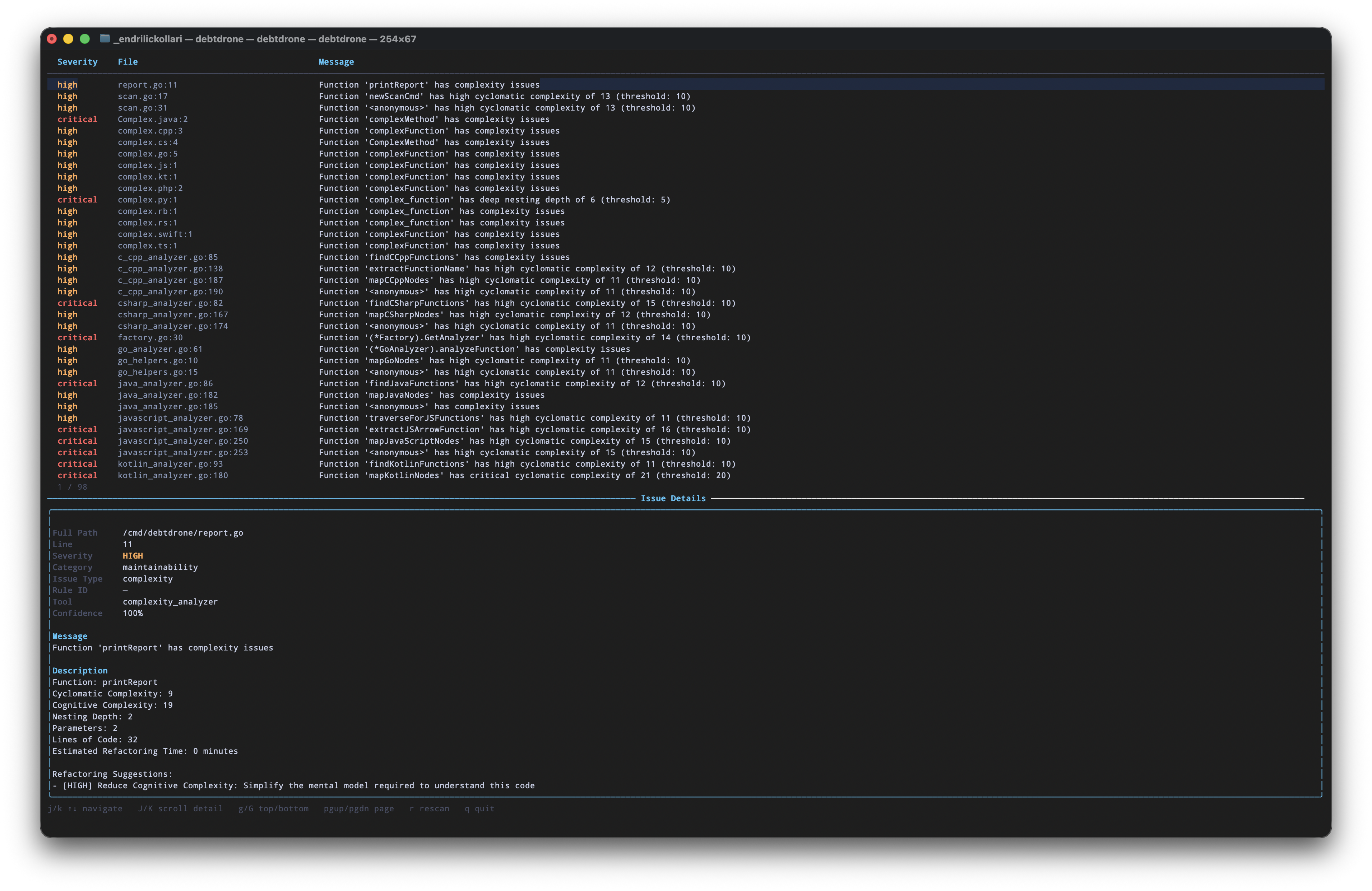

Scan results master-detail view showing findings list and per-function metrics The results view. The top pane lists every finding by severity; the bottom pane shows the full metric breakdown and refactoring suggestions for the selected function.

Press Esc to return to the command bar. Scan results are automatically persisted to history.

/history — Browsing Past Scans

/history

The history view lists every scan DebtDrone has previously run, ordered by date. The header bar shows each entry's timestamp, scanned path, total issue count, and a severity breakdown (C / H / M / L). Selecting an entry opens a Past Scan Summary panel showing the full issue breakdown before you drill further.

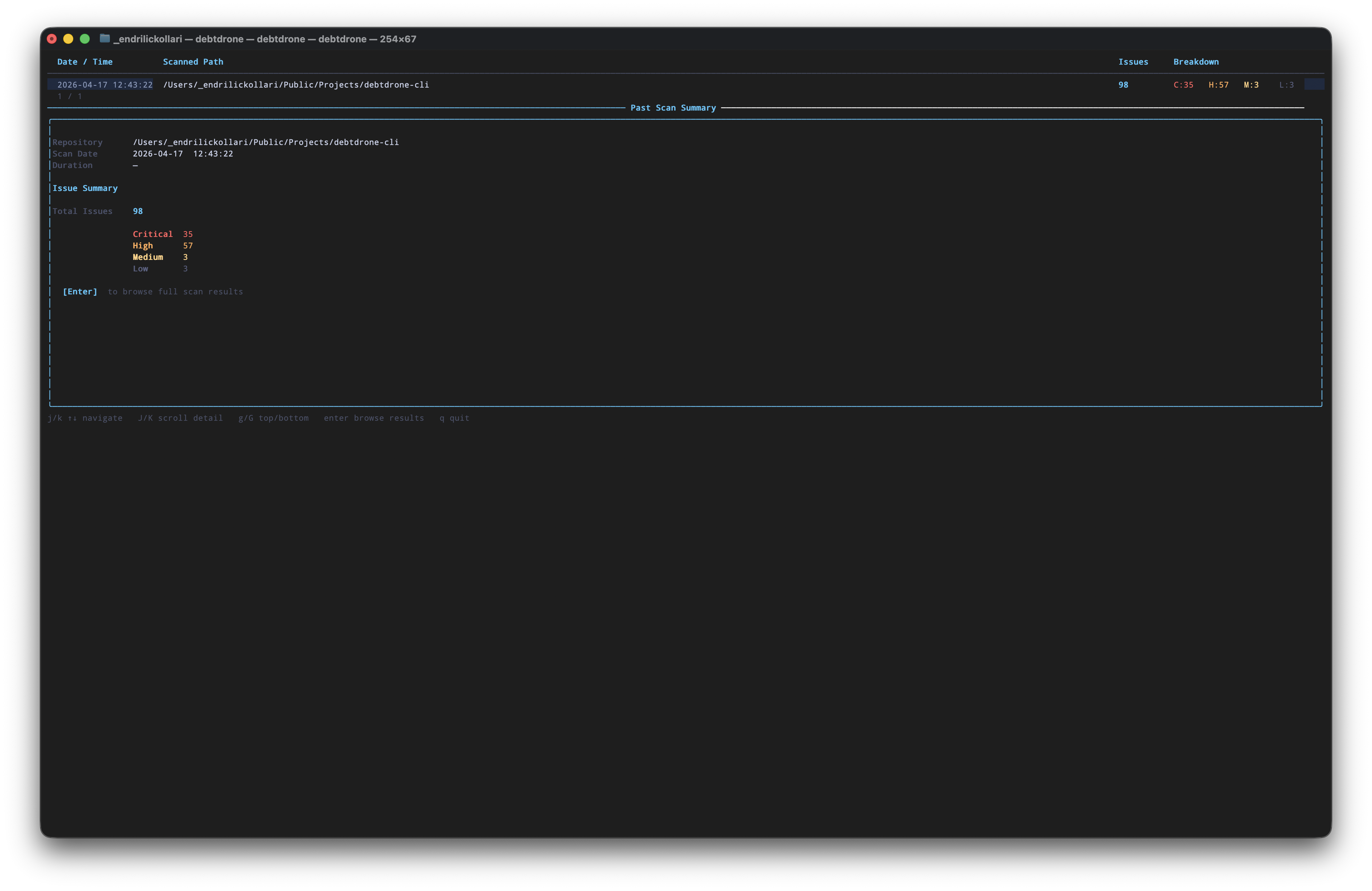

History browser showing a past scan with 98 issues broken down by severity The history browser. The selected entry shows 98 total issues: 35 critical, 57 high, 3 medium, 3 low. Press Enter to open the full results view for that run.

Select any entry with Enter to open it in the same master-detail layout used by the live scan view. Use this to compare a refactored function across two points in time or to demonstrate debt reduction to your team.

Spotting trends

Run a scan before and after a refactoring sprint. Use /history to compare the two runs side-by-side and quantify the improvement in debt minutes eliminated.

/config — Interactive Settings Editor

/config

The config view presents all configurable DebtDrone settings as a navigable form, organised into three sections: General, Quality Gate, and Display. Each item shows its current value inline and accepts edits without leaving the terminal.

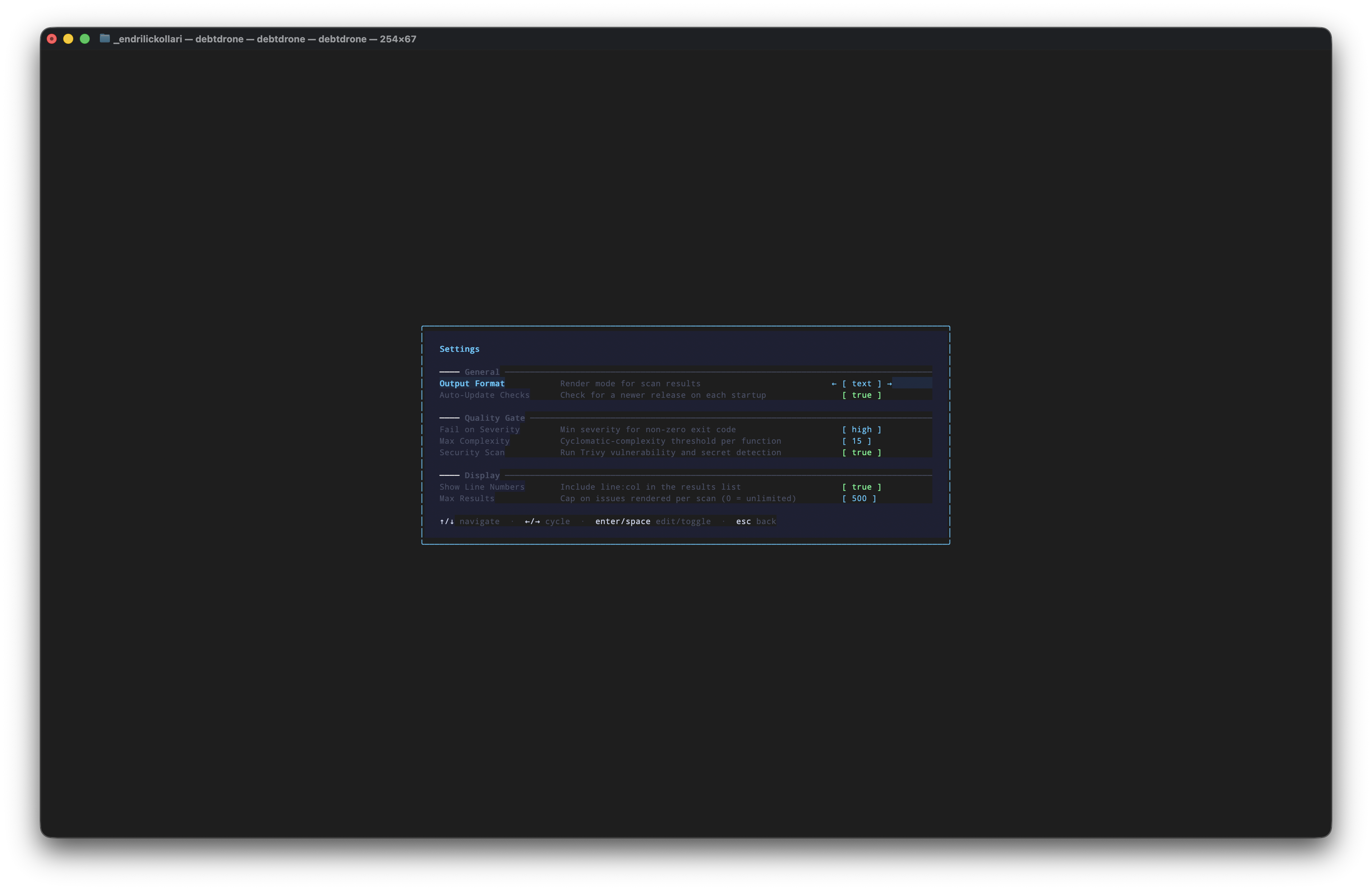

Interactive settings editor showing General, Quality Gate, and Display sections The Settings editor. Navigate with j/k, cycle enum values with ←/→, and toggle booleans with Enter or Space.

Section Setting Description
General Output Format text or json — affects headless CLI output
General Auto-Update Checks Check for a newer release on each startup
Quality Gate Fail on Severity CI exit-1 threshold (low / medium / high / critical / none)
Quality Gate Max Complexity Cyclomatic complexity threshold per function (default: 15)
Quality Gate Security Scan Run Trivy vulnerability and secret detection
Display Show Line Numbers Include line numbers in the results list
Display Max Results Cap on issues rendered per scan (0 = unlimited)

Editing a Value

  1. Navigate to the setting with j/k.
  2. Press Enter to enter edit mode.
  3. For boolean settings, Enter or Space toggles the value directly.
  4. For enum settings (like Output Format), use ←/→ to cycle through valid values and Enter to confirm.
  5. For integer settings, type the new value and press Enter.
  6. Press Esc to cancel an edit without saving.

Changes are written to your .debtdrone.yaml file immediately.

/update — Self-Updater

/update

The update view connects to the GitHub Releases API, compares the current binary version against the latest published release, and presents the result.

  • If you are up to date, a confirmation message is shown.
  • If a new version is available, the release notes and changelog are displayed inline. Press Enter to download and apply the update in-place. The binary replaces itself and the new version is active on the next launch.

Permissions

The updater writes to the same path as the running binary. If DebtDrone was installed in a system directory (e.g., /usr/local/bin), you may need to run it with sudo or reinstall via Homebrew to apply updates.
